L-Shape Blocks

L-Shaped Concrete Block?

  • Very versatile
  • Is designed so that it is self-supporting. The higher up the face you have the product or materials, the more the weight of the product is sitting on the foot and supports the weight against the face.
  • Is fully engineered, so they can be used for multiple purposes
  • They are available in a tapered or stepped configuration for a neat finish.
  • No footing or concreting required – only a compacted level base for the blocks to sit on.
  • They can be backfilled as soon as the blocks have been bolted together and sealed.
  • Custom sizing is available – ranging from 600mm to 2400mm high, 700mm to 1000mm foot, and 1000mm to 2400mm wide.
  • Corner blocks also available – 45 degree, or 90 degree.

L-Shaped Concrete Blocks

Vikon Precast is proudly a family-owned business based in Bairnsdale, manufacturing high-quality precast concrete products. Our easily accessible location lets us service clients from all over the Gippsland region and throughout all of Victoria.

Vikon Precast only uses high-quality materials and steel reinforcing to guarantee you strong and durable concrete products. We offer a wide range of products for the residential, commercial, industrial, and agricultural sectors. With us, you can expect effective, efficient, and excellent work from start to finish.

What Is An L-Shaped Concrete Block?

L-shaped concrete blocks are our most versatile product thanks to their innovative design. Named so for its L-like shape, the L-Block features a longer upright section (called the face) connected to a lower and shorter supporting section (called the foot), which carries the weight.

This concrete product is entirely self-supporting and comes in clean, durable modular panels that can be custom-designed and constructed to fit your specific needs. Face finish designs are also available for a more aesthetic look, which can come in patterns or textures.

What Are L-Blocks Used For?

Due to their very simple design, L-Blocks can be used for virtually any application, mostly either for retaining or containing purposes. So far, we’ve installed L-Blocks for uses such as:

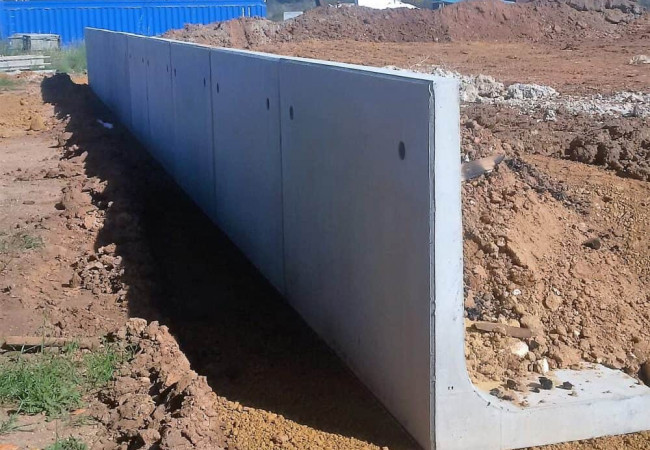

  • Retaining walls

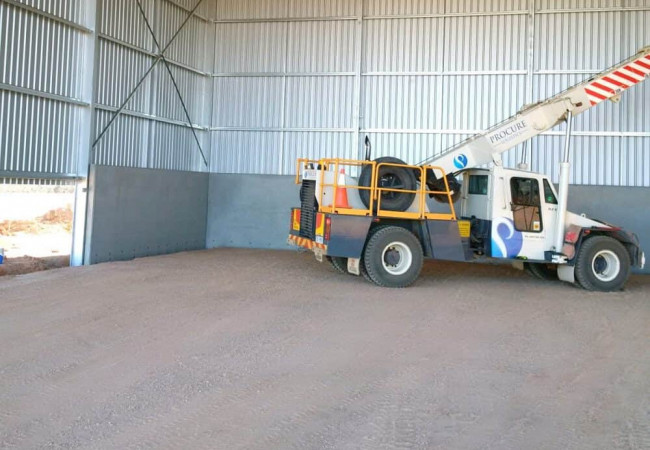

  • Shed walls

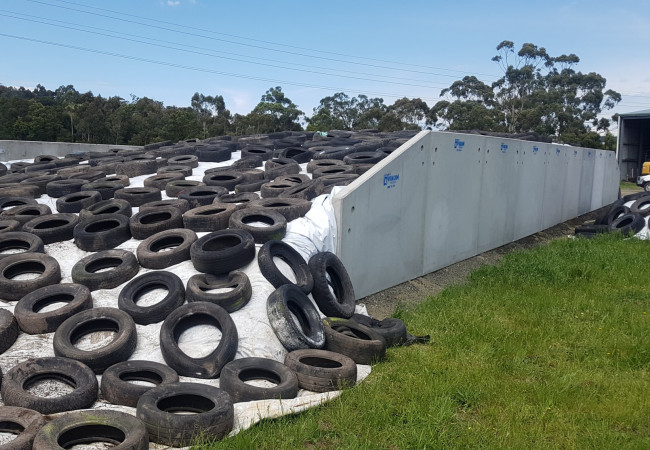

  • Silage Pits

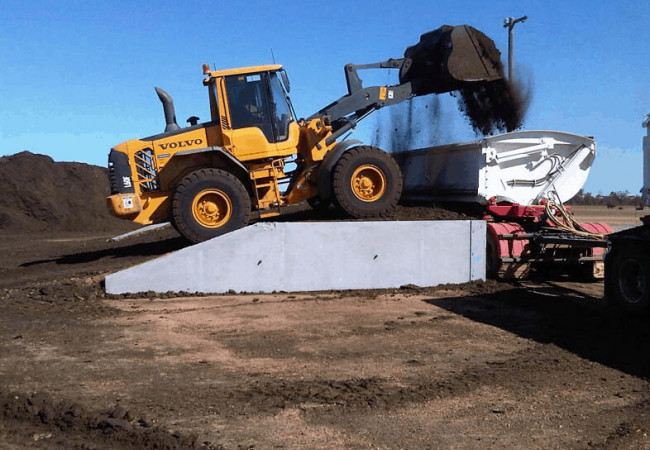

  • Ramps
  • Dividers
  • Loading docks
  • Bunkers for hay, silage, and fodder
  • Storage walls for Grain, Fertiliser, Almond Hulls, etc.
  • Waste recycling

And much, much more

We’ve found that L- Shaped Concrete Blocks are truly multi-purpose and versatile in function. Vikon Precast’s L-Blocks are all pre-cast and specifically engineered to fit your requirements, whether it’s for use in your backyard or in a large agricultural complex.

Features Of L-Shaped Concrete Blocks

One of the best things about L-Blocks is that they are available in different styles, depending on what you or your business needs. Vikon Precast offers both tapered or stepped blocks in a smooth, sleek finish. Each block is locked together using a 10mm galvanised locking plate at the back of the panel which creates one solid wall.

Most important of all, L-Blocks are incredibly easy to install. No concreting or drilling is required. Only a compacted level base for the blocks to sit on- ensuring the ground has a load bearing pressure of 150kPa. This results in an extremely fast and cost-effective solution and takes very little time to complete installation.


Vikon Precast offers custom sizing for L-Blocks. Just contact us with your design requirements and sizing, and we will design the blocks to accommodate your needs. Our sizing parameters are:

  • Height: 0.6m to 2.4m
  • Foot: 0.7m to 1m
  • Width: 1m to 2.4m

We also offer corner blocks in both 45 and 90-degree angles.



How did you hear about us?



Vikon are specialists in providing quality concrete products and can manufacture the right solution for you. Contact us to discuss how we can assist with your project.
